Light emited by OSRAM LEDs is very directional in terms of fibre surface, thus allowing a maximum light penetration into the fibre optic cables yet from very low power device. Thanks to this factor we are able to offer very high brightness of fibres from very tiny light source, with passive cooling, keeping the fibres , port and light sources as cool as it gets.
This Illuminator was designed to be dimmed with standard 24VDC PWM systems, to ease the connection to existing 24V Constant Voltage power systems.
Driver onboard does contain a thermally negative sensor , providing a decrease of power to keep it in safe temperature range allowing maximum lifetime and servicing cycles.
Never look into / point the LED light source while in operation. Light is very sharp and could damage your eyes!
Light source is powered from 24VDC power systems , thus allowing large installations over long distance from power supply. The driver onboard is not sensitive to power cable Voltage drop, so each light source will always shine on 100%, whether it is very first or very last on power line, even with the driver placed remotely.
This Illuminator is suitable for sideglow applications, with MONOcore or MULTIcore, with sideglow or endglow fibres, offering very good results for example in Wellnesses, Saunas, Exterior lighting, Swimming pool lighting, Hotels, bars,...

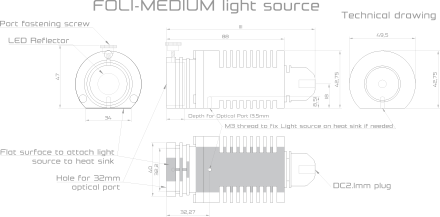

Diameter of hole for optical port is 32mm, delivered normally with spring installation clips, fixing screws and one DC 2,1mm power connetor to connect on your 24VDC cables.
Especially suitable for saunas, exterior, facade lighting, etc.
| Property | Value |
| Colour temperature (primary light source) Correlated Colour Temperature CCT (K) of primary light source : is basically a specific numerical measurable definition of light colour of White spectrum according to black body curve (for example 2700K is Warm white Incandescent light, 3000K is wartm white too, but rather of halogene spectrum, but slightly more coldish etc. | 2400 K |
| Enviroment temperature | 55 °C |
| Port diameter | 32 mm |
| Light type | SWW-Super Warm white |
| Replaceable optic | No |
| Dimmable | No |
| Cooling | Pasive |
| Changeable output parameter | No |
| Remote Controll | Nie je súčasťou. ale je možné |
| Programmable | No |
| Light source | LED |
| IP degree | IP20 |
| IN/OUT terminals | Connector |
| Including Light source | Yes |
| Suitable for exterior and moist areas | Possible with alternation |
| External power supply included | No |
| Input voltage (Power supply) | DC CV |
| Electrical protection | Polarity protection, Over temperature protection, ESD protection <2KV, Over Voltage protection, OverPower protection |
| Maximálne napájacie napätie Maximálne napájacie napätie, ktorým je možné napájať zariadenie, bez toho aby došlo ku poruche. Používajte iba krátkodobo. | 28 V |
| Total el. power | 8 W |
| Colour rendering index CRI | 80 |
| Typical Power Voltage (power supply) | 24 V |
